120C、150、152 Visible Frame、Hidden Frame、Semi Hidden Frame Curtain Wall

Product Inquiry

Product Details

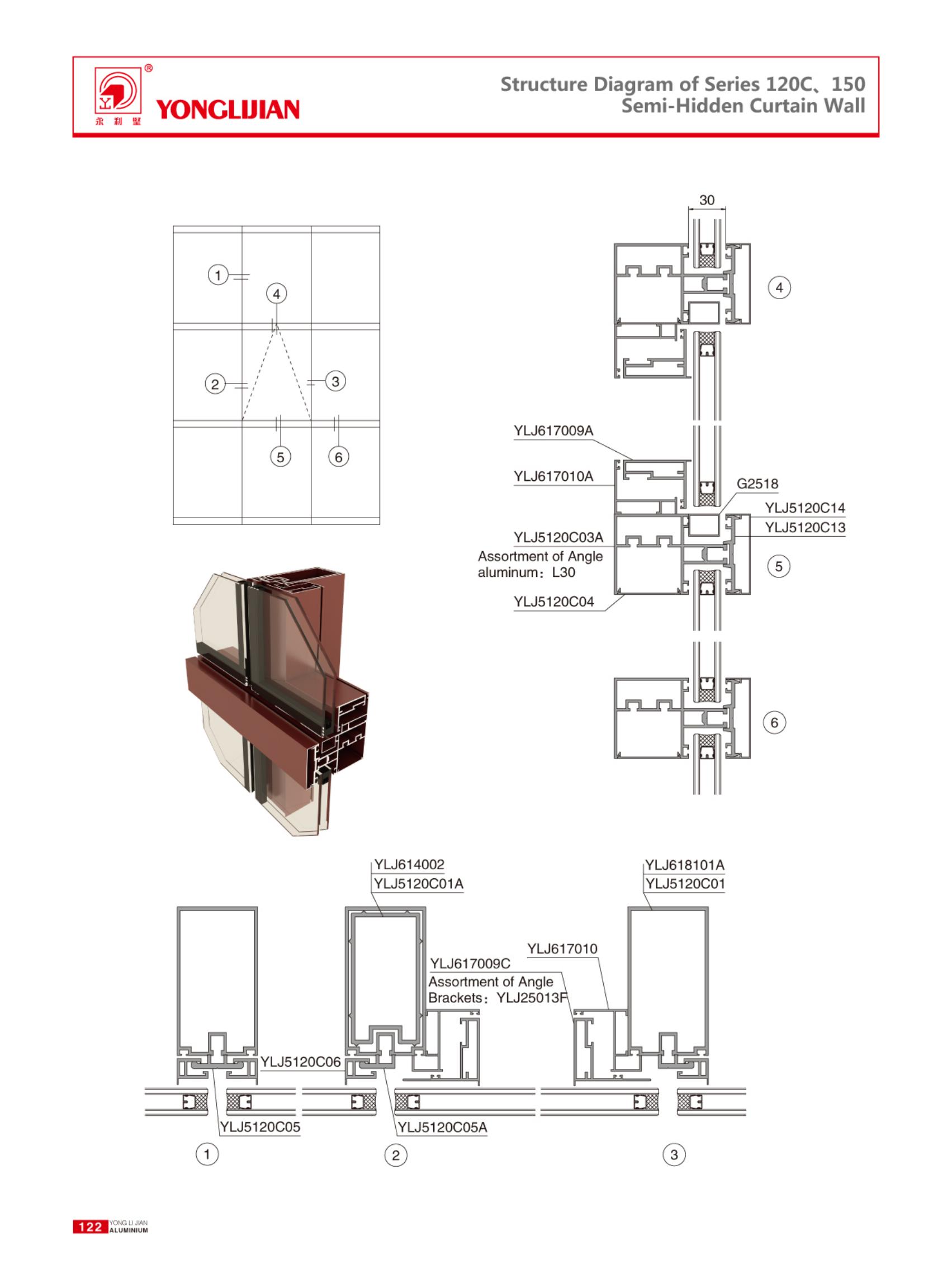

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall.jpg

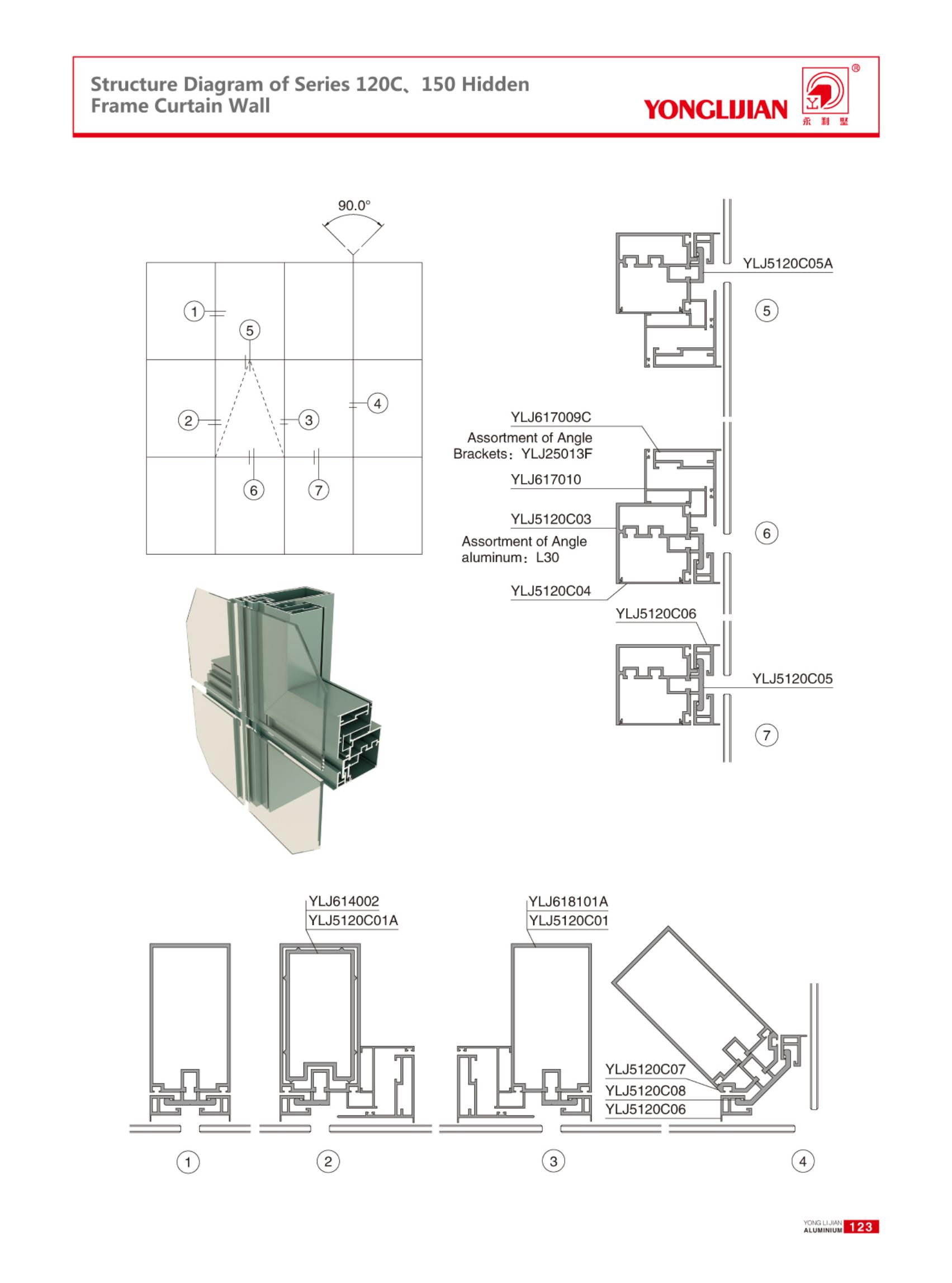

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (2).jpg

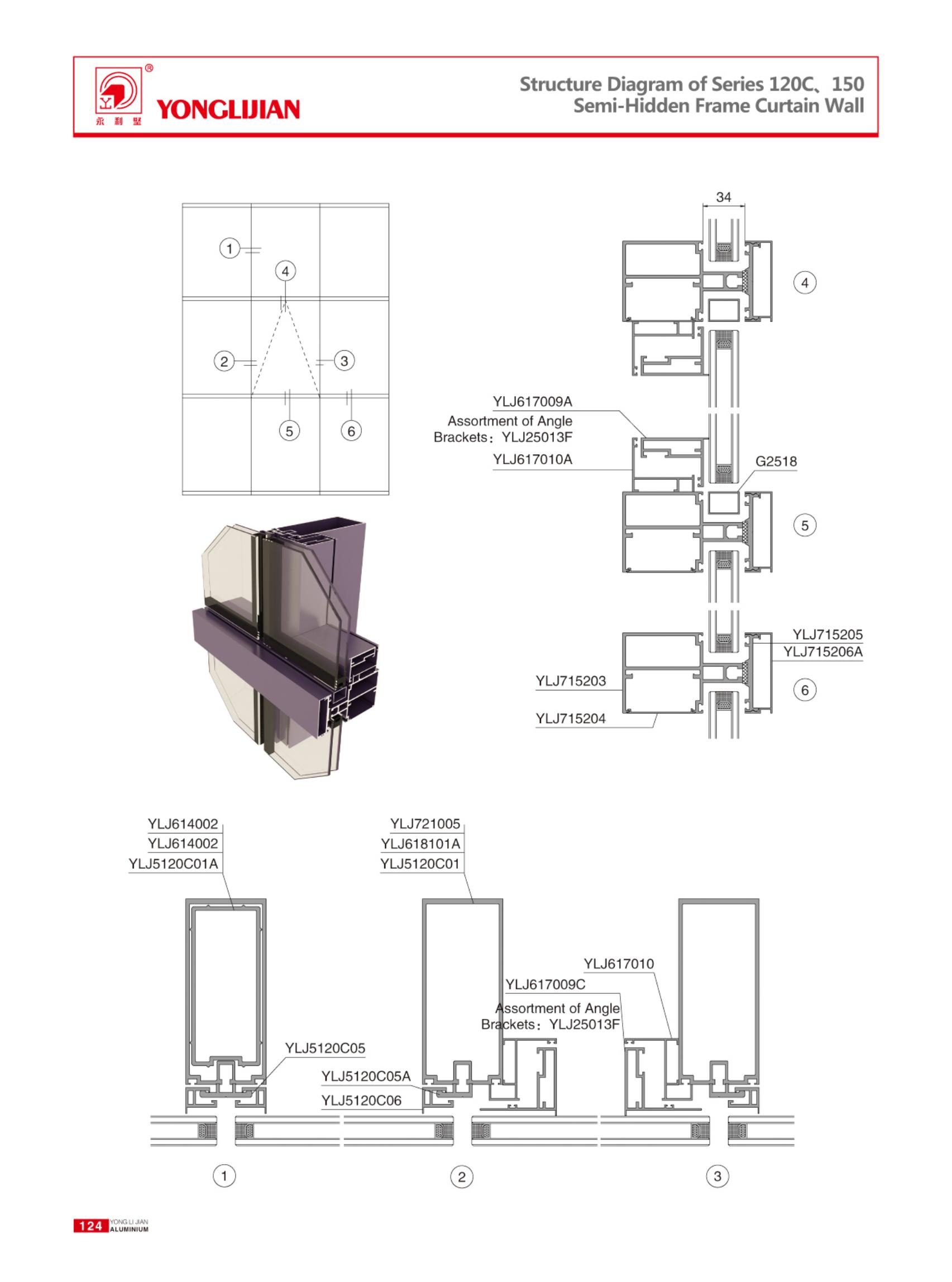

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (3).jpg

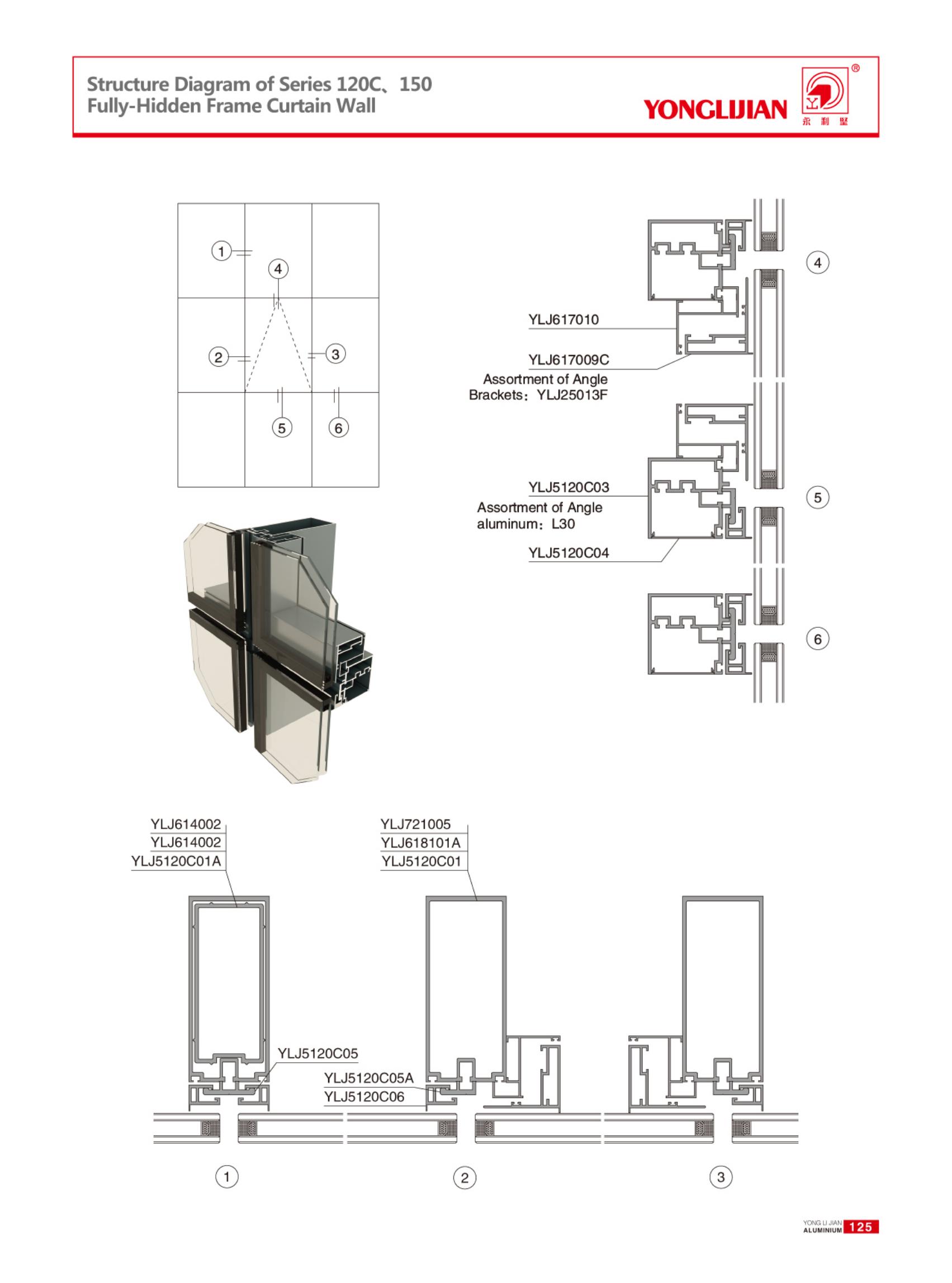

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (4).jpg

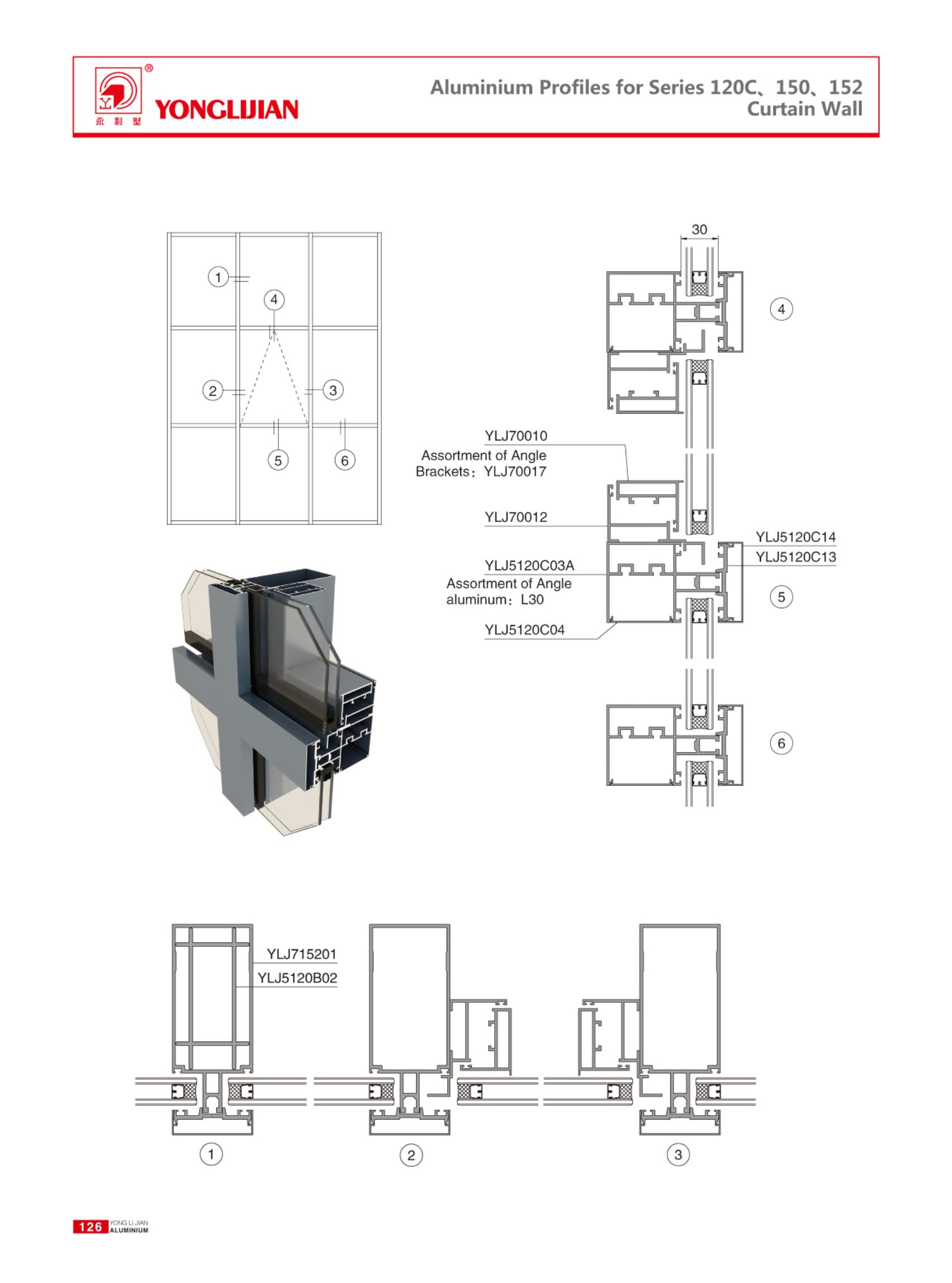

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (5).jpg

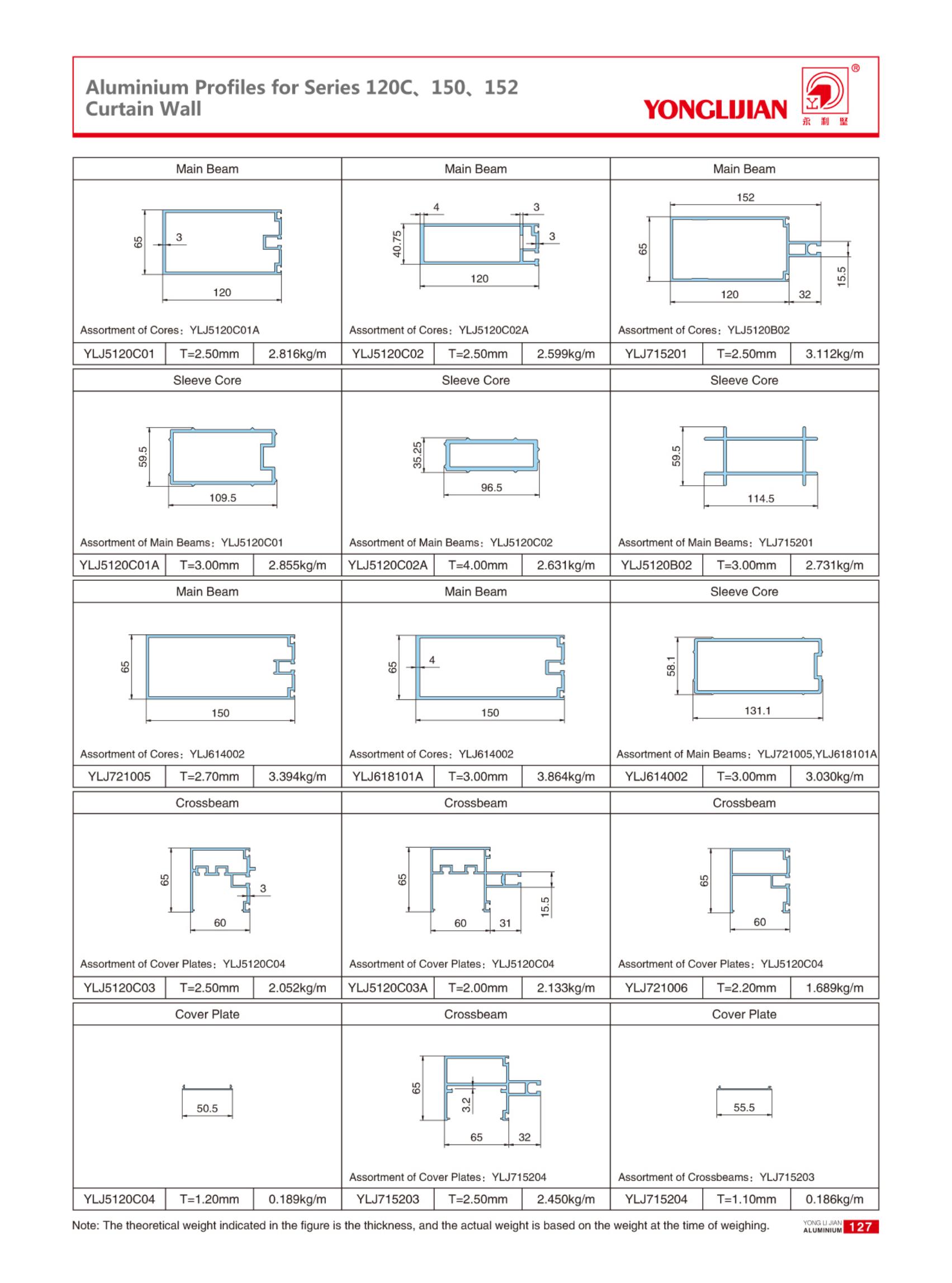

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (6).jpg

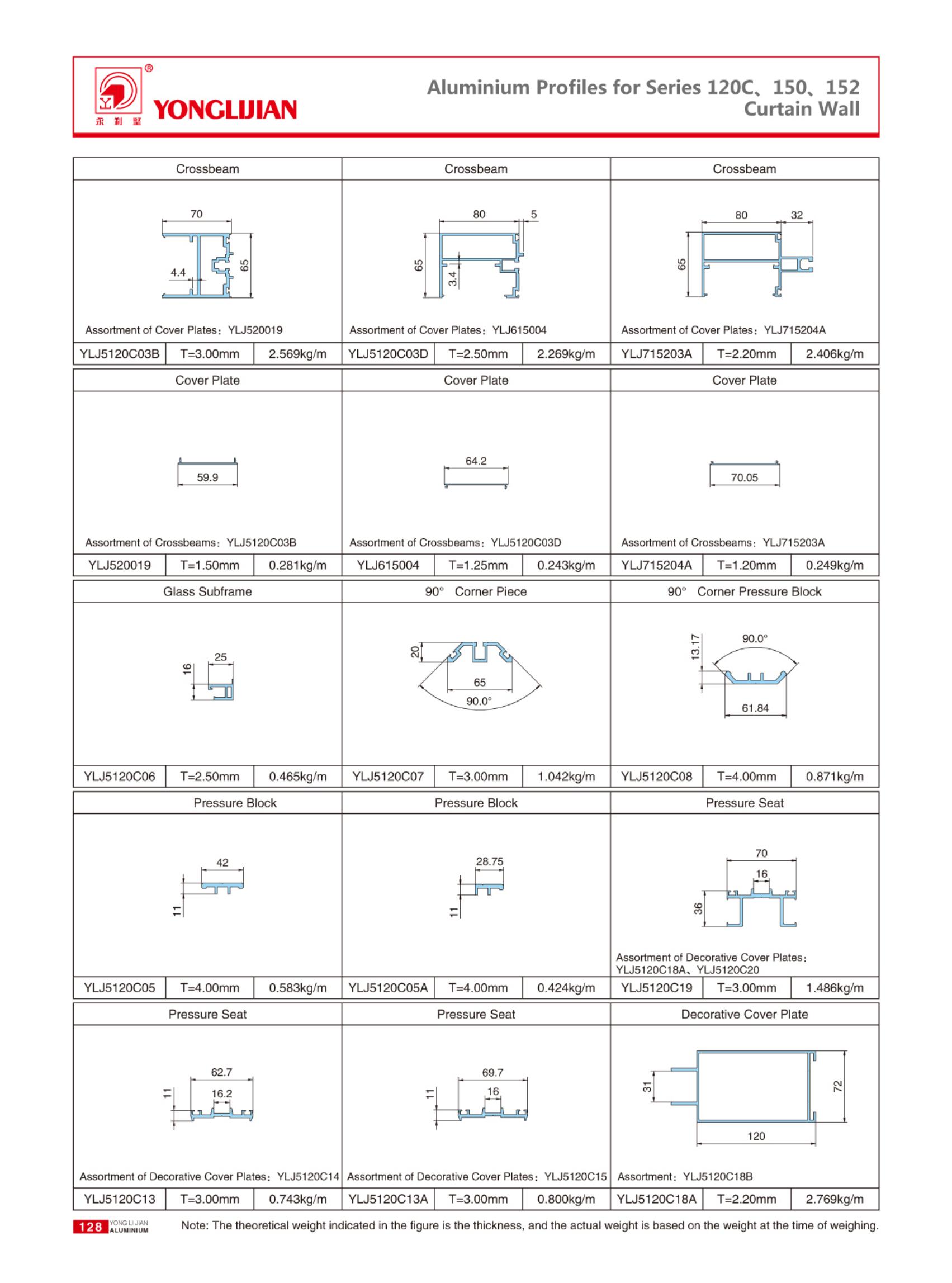

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (7).jpg

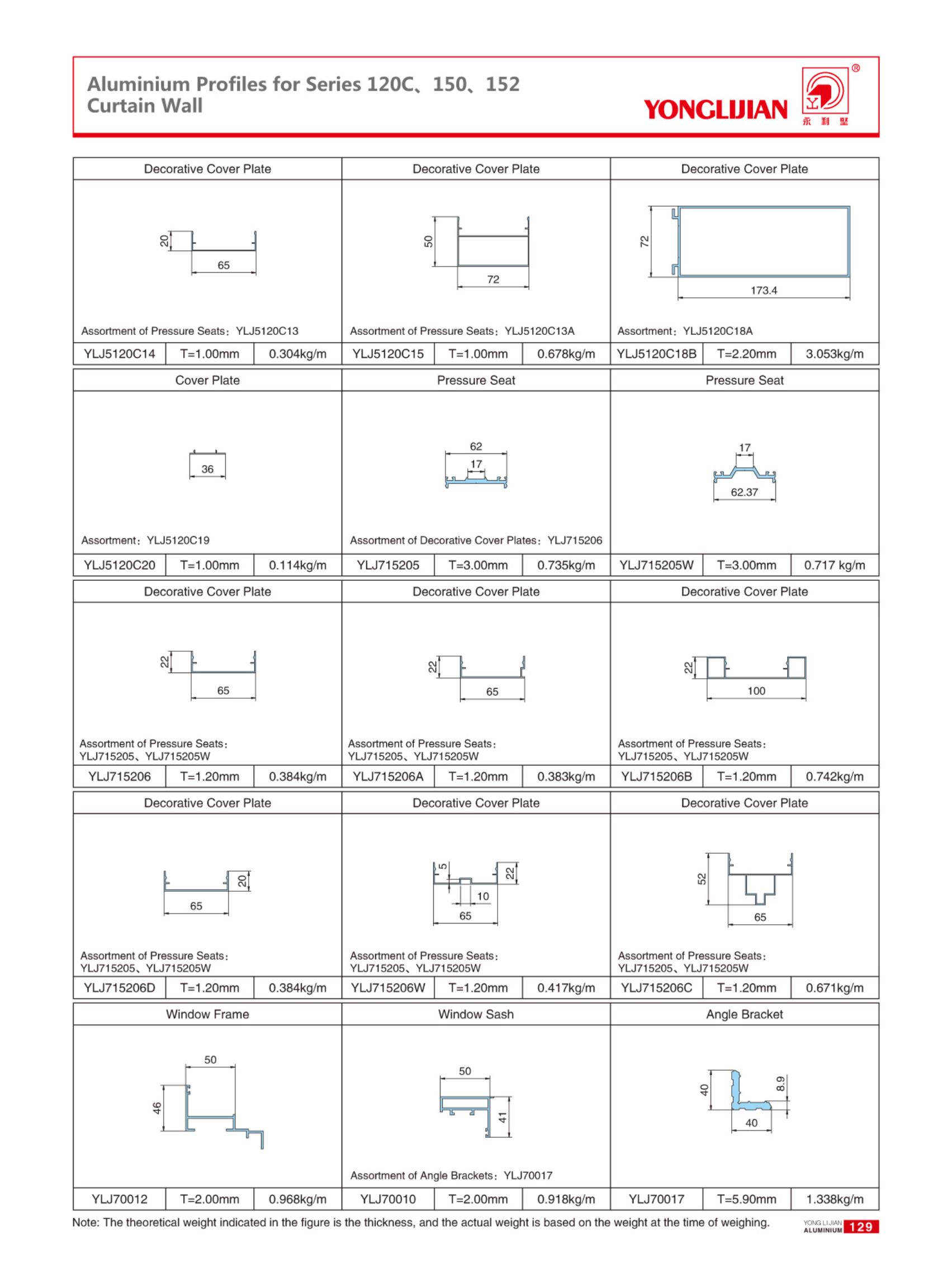

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (8).jpg

Structure Diagram of Series 120C、150Semi-Hidden Curtain Wall (9).jpg
